Database nr. | : | 00364 |
---|---|---|
Titel | : | Model windtunnel / Scale model wind tunnel |
Instituut | : | NLL |
Locatie | : | Amsterdam, Marinewerf |
Datering | : | 1938 |

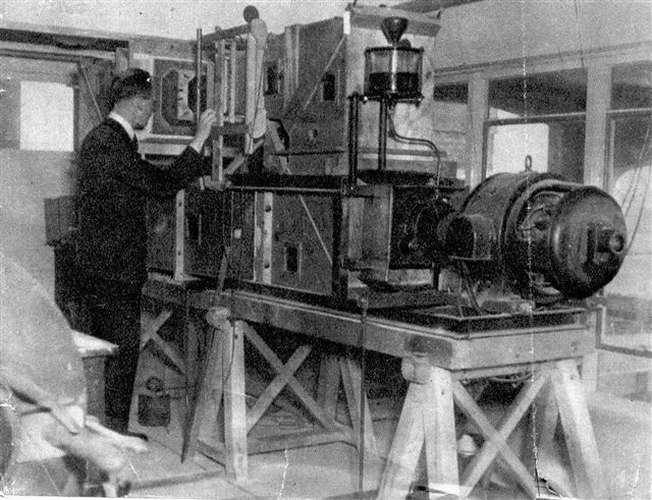

Bijzonderheden | : | Bij de oprichting van het NLL in 1937 werd besloten tot de bouw van twee nieuwe windtunnels op de nieuwe locatie aan de Sloterweg in Amsterdam. Een tunnel in Zürich van het "Göttinger type" ontworpen door Prof. Ackeret stond hier model voor. Daarbij circuleert de lucht in de tunnel via een omloopkanaal, zonder interactie met de lucht in de omgeving. Dit in tegenstelling tot de eerste tunnel van de RSL van het Eiffel-type waarbij de lucht terugstroomde door de ruimte waarin de tunnel stond opgesteld. Tunnel 2 (zie foto) was de modeltunnel van de twee nieuw te bouwen tunnels (schaal 1:10 van de grote tunnel nr. 3). Bij de bouw van de modeltunnel werd geadviseerd door prof. Burgers die ook de schroef heeft ontworpen. Deze modeltunnel is later gebruikt voor kalibraties. At the establishment of the NLL in 1937 it was decided to build two new wind tunnels at the new location at the Sloterweg in Amsterdam. A wind tunnel of the "Göttinger type" designed by Prof. Ackeret in Zürich was used as example. The air in this type circulates within a closed tunnel circuit. The tunnel nr. 2 (photo) was a scale model for both wind tunnels to be built, at scale of 1:10 of the new large wind tunnel. For the deisgn of the model tunnel prof. J.M.Burgers was consulted. He also designed the fan of the tunnel. This model tunnel was used later for calibrations. Zie ook beeldbankfoto 00086 voor prof. Burgers Zie Museumobject 00370 voor de modelschroef van Burgers Referenties: [1] NLL jaarverslag 1938, p.33 [2] B. van den Berg: Windtunnels en windtunnelmetingen in vroegere tijden bij RSL en NLL [3] "Beproeving van windtunnel 2 van het Nationaal Luchtvaartlaboratorium" , rapport A.832 van A. de Lathouder en S.I. Wiselius (1942) |
Fotograaf | : | |
Collectienaam | : | |
Rubriek | : | Aerodynamica |
Subrubriek | : | Windtunnels |
Categorie | : | Foto: z/w |
Achterkant afbeelding | : | |
Afmetingen | : | |
Rapportnummer | : | A.0832 |
|
||
